codeable_models.CObject¶

class codeable_models.CObject(cl, name=None, **kwargs)¶

CObject is used to define objects. Objects in Codeable Models are instances of classes (defined using CClass).

Superclasses: CBundlable

Parameters

cl (CClass) – The class this object is instantiated from. Each object requires a class, defined using CClass.
name (str) – An optional name.
**kwargs – Pass in any kwargs acceptable to superclasses.

Examples:

An example object definition is:

basic_pen = CObject(product, values={"id": "P001", "name": "Basic Pen", "price": 1.50})

Here an unnamed object is derived from class product with two string values id and name, as well as a float value price. The following defines the same object, except that it uses an object name instead of defining a name as an attribute value:

basic_pen = CObject(product, "Basic Pen", values={"id": "P001", "price": 1.50})

Main Relations:

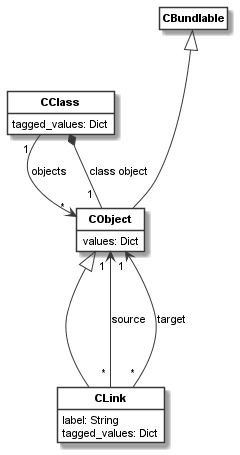

The main relations of CObject are shown in the figure below.

Each CObject can be used in bundles through its superclass CBundlable. Objects are instances of type CClass.

Each CClass has one class object, a special object to manage the instance relation of a class to its meta-class. For instance, the values of meta-class attributes and links for meta-class associations are stored and managed via wrapper methods on CClass that call the respective methods of the class object.

Each object can be source or target of a link. Links are only valid, if there is an association between the classes of the objects to be linked (and multiplicities are correctly set on these associations). The association is the classifier of the link (thus it inherits from CClassifier), and the link is interpreted as an instance of the association (thus it inherits from CObject).

add_links(links, **kwargs)¶

Add links on this object (which are based on associations defined on the object’s class). Uses the function add_links(). That is, it is possible to use the following equivalently:

add_links({<this_object>: <links>}, <**kwargs>)

Parameters

links – The new links to be defined.
**kwargs – Any keyword arg acceptable to add_links().

Returns

List of created link objects.

Return type

list[CLink]

property class_object_class¶

Getter for the class that has this object as a class object. Returns None if this object is not a class object.

Type: CClass

property classifier¶

Get/set the classifier of this object. For the setter, changes to the classifier (i.e., the association) of a link should not be performed with CObject methods.

Type: CClassifier

delete()¶

Delete the object and delete it from its classifier. Delete all links of the object. Calls delete() on superclass.

Returns: None

delete_links(links, **kwargs)¶

Delete links on this object (which are based on associations defined on the object’s class). Uses the function delete_links(). That is, it is possible to use the following equivalently:

delete_links({<this_object>: <links>}, <**kwargs>)

Parameters

links – The links to be deleted.
**kwargs – Any keyword arg acceptable to delete_links().

Returns

List of deleted link objects.

Return type

list[CLink]

delete_value(attribute_name, classifier=None)¶

Delete the value of an attribute with the given attribute_name. Optionally the classifier to consider can be specified. This is needed, if one or more attributes of the same name are defined on the inheritance hierarchy. Then a shadowed attribute can be accessed by specifying its classifier.

Parameters

attribute_name – The name of the attribute.
classifier – The optional classifier on which the attribute is defined.

Returns

Value of the attribute.

Return type

Supported Attribute Types

get_linked(**kwargs)¶

Method to get the linked objects defined for this object filtered using criteria specified in kwargs.

Parameters

**kwargs –

Defines filter criteria.

association:
Include links only if they are based on the specified association.
role_name:
Include links only if they are based on an associations having the specified role name either as a target or source role name.

Returns

List of linked objects

Return type

list[CObject]

get_links_for_association(association)¶

Method to get all link objects which are defined based on the given association.

Parameters: association – Association used to filter the links.
Returns: The list of link objects.
Return type: list[CLink]

get_value(attribute_name, classifier=None)¶

Get the value of an attribute with the given attribute_name. Optionally the classifier to consider can be specified. This is needed, if one or more attributes of the same name are defined on the inheritance hierarchy. Then a shadowed attribute can be accessed by specifying its classifier.

Parameters

attribute_name – The name of the attribute.
classifier – The optional classifier on which the attribute is defined.

Returns

Value of the attribute.

Return type

Supported Attribute Types

instance_of(classifier)¶

Tests whether this object is an instance of classifier or not.

Parameters: classifier (CClassifier) – The classifier to test against.
Returns: The result of the test.
Return type: bool

property linked¶

Getter for getting the linked objects defined for this object.

Type: list[CObject]

property links¶

Getter for getting the links defined for this object. Object links are based on the associations defined for the object’s class.

Type: list[CLink]

set_value(attribute_name, value, classifier=None)¶

Set the value of an attribute with the given attribute_name to value. Optionally the classifier to consider can be specified. This is needed, if one or more attributes of the same name are defined on the inheritance hierarchy. Then a shadowed attribute can be accessed by specifying its classifier.

Parameters

attribute_name – The name of the attribute.
value – The new value.
classifier – The optional classifier on which the attribute is defined.

Returns

None

property values¶

Getter for getting all values of the object using a dict, and setter of setting all values of the object based on a dict. The dict uses key/value pairs. The value types must conform to the types defined for the attributes.

Type: dict[str, value]
