codeable_models.CLink¶

class codeable_models.CLink(association, source_object, target_object, **kwargs)¶

CLink is used to define object links. Objects can be linked if their respective classes have an association. When linking objects, the association definitions are checked for correctness. For example, linking three objects to an object in a 1:1 multiplicity relation, yields an exception.

Superclasses: CBundlable

Parameters

association (CAssociation) – The association that defines the link and is the classifier of this link.
source_object (CObject) – The object from which a link to another object shall be created; must be an instance of the respective class in the association.
target_object (CObject) – The object to which a link to another object shall be created; must be an instance of the respective class in the association.
**kwargs –
Pass in any kwargs acceptable to superclasses. In addition CLink accepts stereotype_instances:
- stereotype_instances:
  Any CStereotype extending the association of this class can be defined on the link as a stereotype instance. That is, the list of stereotypes on the association defines the possible stereotypes instances of the link. The kwarg accepts a list of stereotype instances or a single stereotype instance as argument.

Examples:

The following defines for two cart objects links from the cart to its items via the add_links() function. It uses a role name to determine the correct association and association direction:

new_links = add_links({cart1: [item1, item2],
                       cart2: [item3, item4, item5]}, role_name="item in cart")

The list of created CLink objects is returned.

The same links could be defined using add_links on CObject:

new_links_1 = cart1.add_links([item1, item2], role_name="item in cart")
new_links_2 = cart2.add_links([item3, item4, item5], role_name="item in cart")

Both calls also return the list of created CLink objects.

Main Relations:

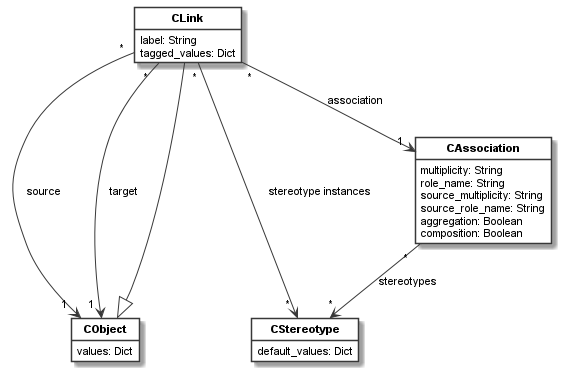

The main relations of CLink are shown in the figure below.

Each object can be source or target of a link. Links are only valid, if there is an association between the classes of the objects to be linked (and multiplicities are correctly set on these associations).

The association is the classifier of the link (thus it inherits from CClassifier), and the link is treated as an instance of the association (thus it inherits from CObject).

Links can have stereotype instances of the stereotypes defined for the CAssociation of the link.

delete()¶

Delete the link, delete it from source and target, and delete its stereotype instances. Calls delete() on superclass.

Returns: None

delete_tagged_value(name, stereotype=None)¶

Delete tagged value of a stereotype attribute with the given name. Optionally the stereotype to consider can be specified. This is needed, if one or more attributes of the same name are defined on the inheritance hierarchy. Then a shadowed attribute can be accessed by specifying its stereotype.

Parameters

name – The name of the attribute.
stereotype – The optional stereotype on which the attribute is defined.

Returns

Value of the attribute.

Return type

Supported Attribute Types

get_opposite_object(cobject)¶

Given an object, this method returns the opposite in the link, i.e. the source if object is the target, and vice versa. Raises an exception if object is neither source nor target.

Parameters: cobject – The object from which we want to get the opposite in the link.
Returns: The opposite object.
Return type: CObject

get_tagged_value(name, stereotype=None)¶

Get the tagged value of a stereotype attribute with the given name. Optionally the stereotype to consider can be specified. This is needed, if one or more attributes of the same name are defined on the inheritance hierarchy. Then a shadowed attribute can be accessed by specifying its stereotype.

Parameters

name – The name of the attribute.
stereotype – The optional stereotype on which the attribute is defined.

Returns

Value of the attribute.

Return type

Supported Attribute Types

is_class_link()¶

Returns True if this is a link between classes (class objects), else False.

Returns: Result of the check.
Return type: bool

property role_name¶

Getter for the (target) role name of this link.

Type: str

set_tagged_value(name, value, stereotype=None)¶

Set the tagged value of a stereotype attribute with the given name to value. Optionally the stereotype to consider can be specified. This is needed, if one or more attributes of the same name are defined on the inheritance hierarchy. Then a shadowed attribute can be accessed by specifying its stereotype.

Parameters

name – The name of the attribute.
value – The new value.
stereotype – The optional stereotype on which the attribute is defined.

Returns

None

property source¶

Getter for the source object of this link.

Type: CObject

property source_role_name¶

Getter for the source role name of this link.

Type: str

property stereotype_instances¶

Getter to get and setter to set the stereotype instances of this link.

The stereotype instances must be stereotypes extending the association of the link.

The setter takes a list of stereotype instances or a single stereotype instance as argument. The getter always returns a list.

Type: list[CStereotype]|CStereotype

property tagged_values¶

Getter for getting all tagged values of the link using a dict, and setter of setting all tagged values of the link based on a dict. The dict uses key/value pairs. The value types must conform to the types defined for the attributes.

Type: dict[str, value]

property target¶

Getter for the target object of this link.

Type: CObject
